Finding The Right Solution for Outer Diameter Measurements

When looking for the best way to measure outer diameter, there are a number of important factors to consider, including the shape of the target, the type of measurement system, and the installation environment. Selecting equipment that doesn't adequately meet your needs can lead to insufficient precision and increased man-hours during production, so choosing the right equipment is important. This site is designed to help you discover the best way to perform outer diameter measurements with confidence.

How to Measure Outer Diameter

  • STEP 1: Look at the methods outlined in each item to find the best measurement method.
  • STEP 2: Download the catalogue to learn more about the system.
  • STEP 3: Get in touch with your local measurement expert to have an on-site consultation about your application.
  1. A- Thin target B- Thick target
  2. A-A- Measurement of outer diameter at one location A-B- Measurement of outer diameter at multiple locations
  3. Example Applications

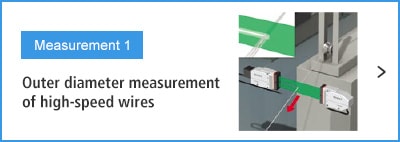

    • A-A- Measurement 1 Outer diameter measurement of high-speed wires

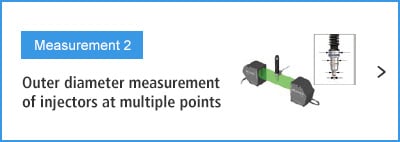

    • A-B- Measurement 2 Outer diameter measurement of injectors at multiple points

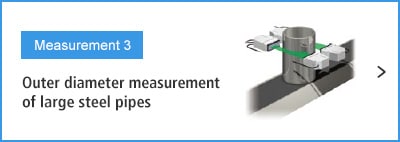

    • B- Measurement 3 Outer diameter measurement of large steel pipes
