Optical Comparator

Optical Comparator

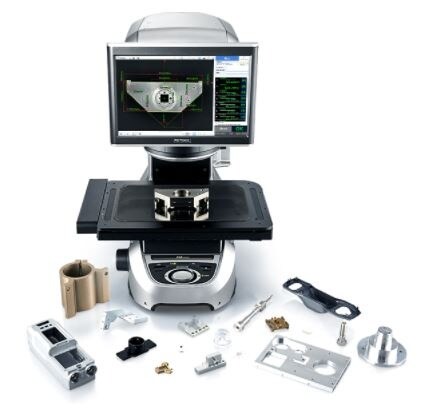

Instant Measurement System
- Measure 99 critical dimensions in 3 seconds.
- Eliminate subjectivity between operators.
- Automatically records data and generates inspection reports.
- Easy-to-use software, fast processing and accurate measurements.
- Download Brochure

What is an Instant Measurement System?

The IM Series is typically referred to as 'The Next Generation Optical Comparator'. The system houses 24 fixed position lens, two cameras and collimated lighting in order to dimension 99 critical features within three seconds. All measurement results are backed by automatically generated inspection reports that prove out the accuracy and repeatability of the unit.
Why do customers use the IM Series?

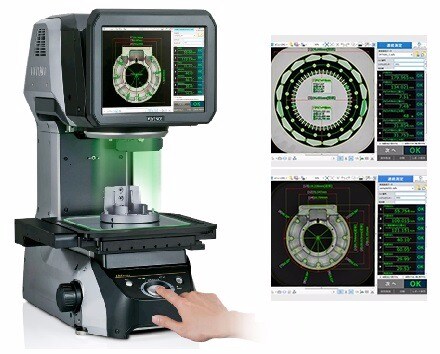

The system is easy-to-use, fast and accurate. It eliminates operator subjectivity and be used on the manufacturing floor or quality lab. With the push of just one button, operators are able to measure 99 critical features on a part and have an inspection report automatically created.

Spring
Lathe Processing
Threads
Plastic with Toplight

For more information please download the brochure.

Download Brochure
