Profile Projector

Incorporating all the great functions from numerous conventional equipment such as

- GD&T - Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper -

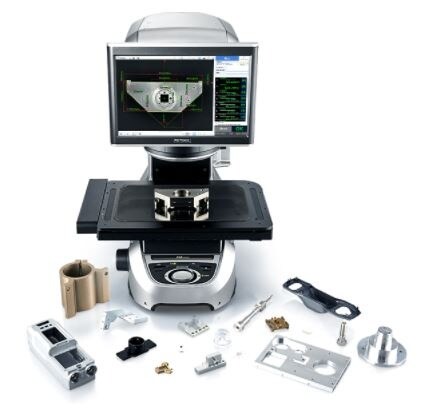

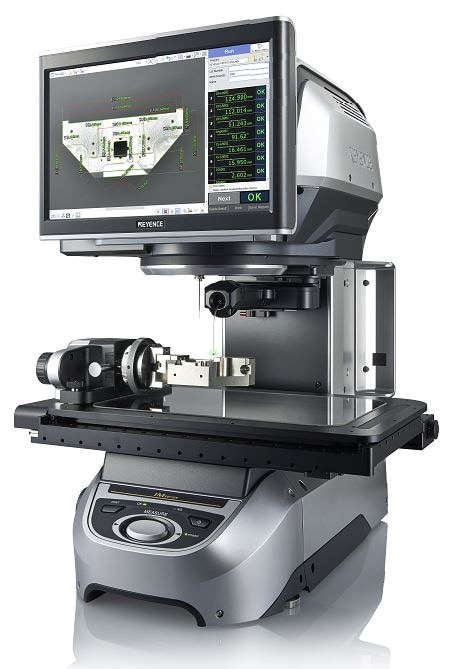

The IM Series Image Dimension Measurement System is a completely new measurement system that performs dimensional measurement with a simple “Place and Press” operation.

Find out what you can get from the New Version Catalogue of the IM Series

View Catalogue

3 BIG problems in the industries:
- Slow measurement up to minutes
- Inconsistent results
- Complicated processes and data collection
Solutions from the IM Series:
- Measure up to 300 dimensions on a part within 3 seconds
- 3 build-in automated functions eliminate operator error
- Intuitive interface allows easy set up and data storage
