Application SolutionsEccentricity

For Individuals Looking for Eccentricity Measurement Systems

When looking for the best way to measure eccentricity, there are a number of important factors to consider, including the type of measurement system and the installation environment. Selecting equipment that doesn't adequately meet your needs can lead to insufficient precision and increased man-hours during production. This site is designed to help users determine the best way to perform measurement with confidence in regards to an eccentricity measurement system.

How to Measure Eccentricity

  • STEP 1: Look at the outlined methods in each item to find the best measurement method for the application at hand.
  • STEP 2: Download the relevant measurement system catalogue.

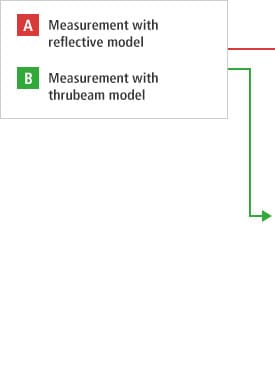

  1. A- Measurement with reflective model B- Measurement with thrubeam model

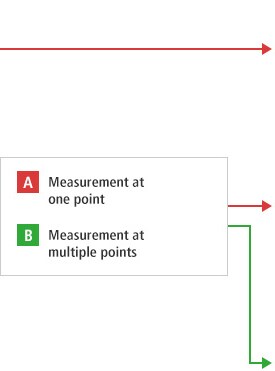

  2. B-A- Measurement at one point B-B- Measurement at multiple points
  3. Example Applications
    • A- Measurement 1 Eccentricity measurement of high-precision rollers
    • B-A- Measurement 2 Eccentricity measurement of motor shafts
    • B-B- Measurement 3 Eccentricity measurement of sponge rollers
