Precision Detection in Nearly Any LocationHigh-Accuracy Anywhere

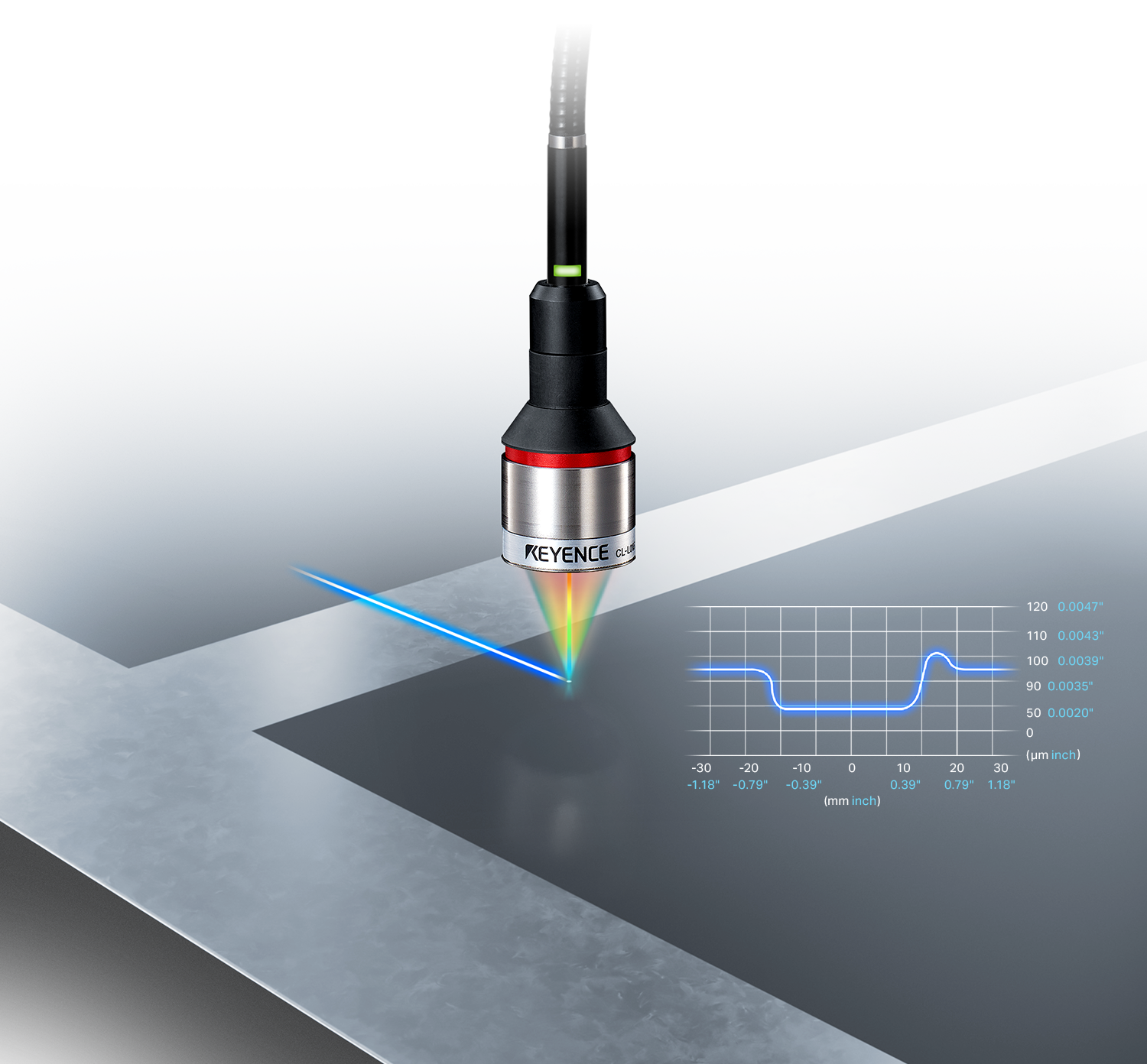

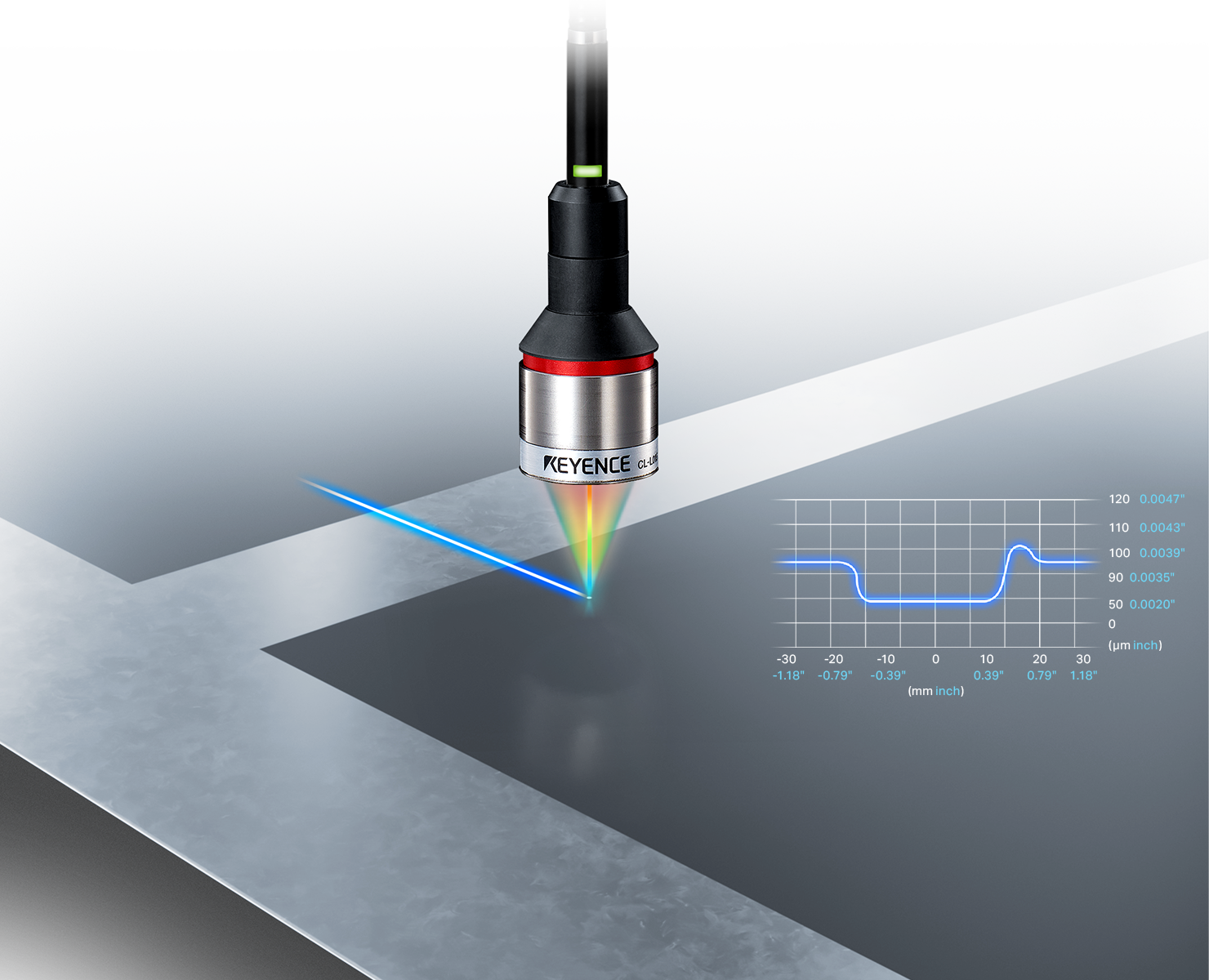

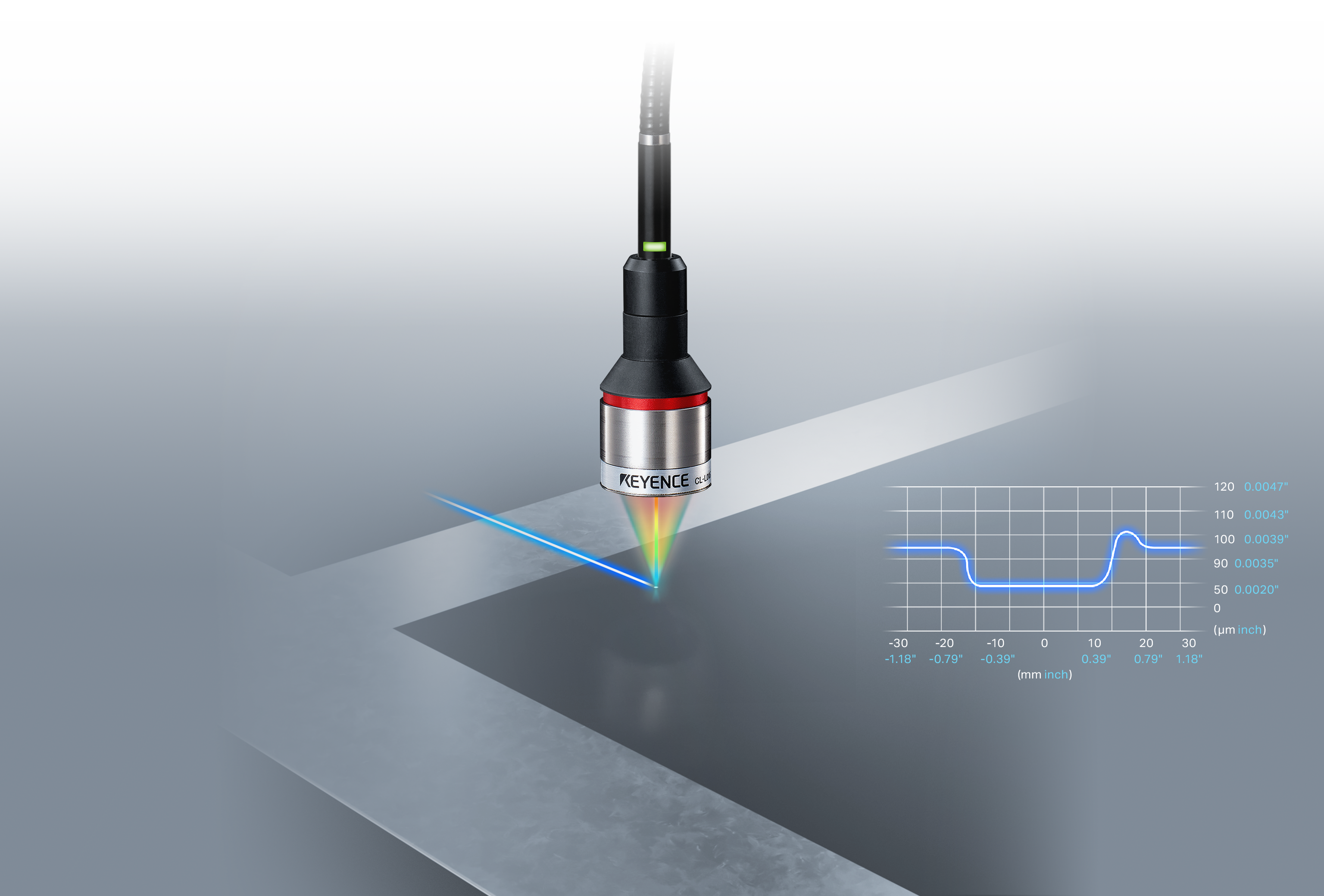

Confocal Displacement Sensor
CL-3000 Series
CL-3000 Series User Support

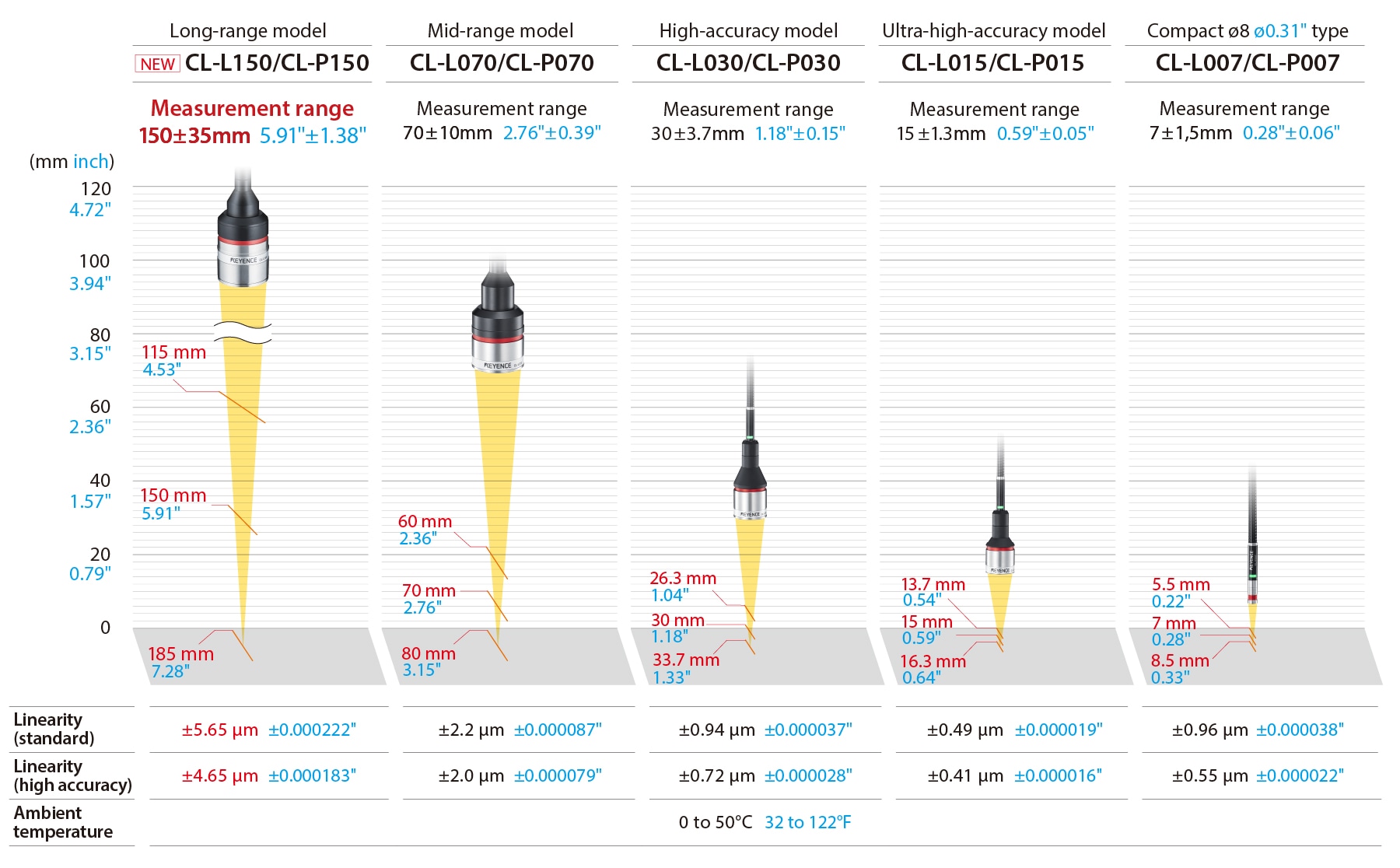

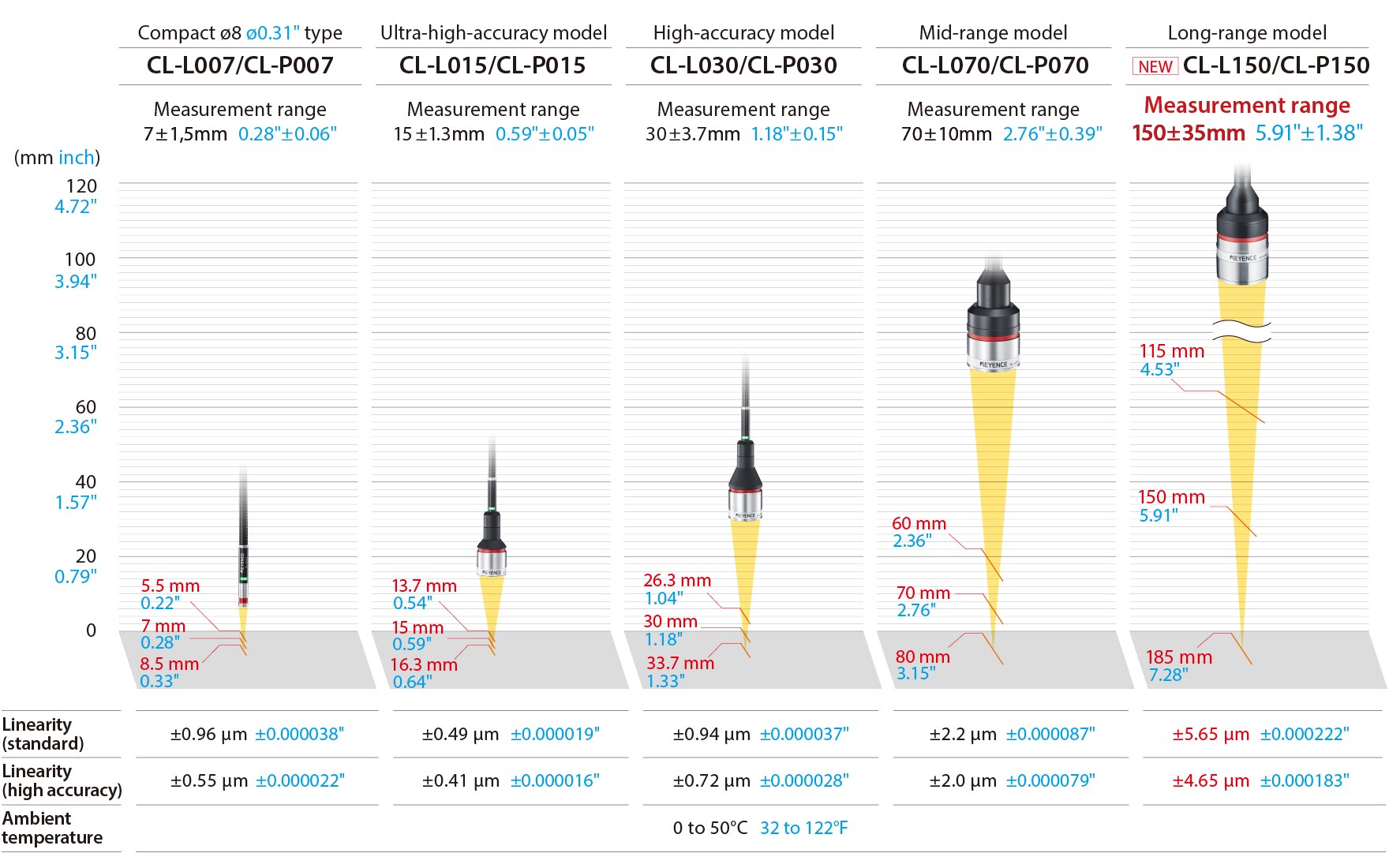

Wide Variety of Heads for Use in Any Environment
Long-range heads

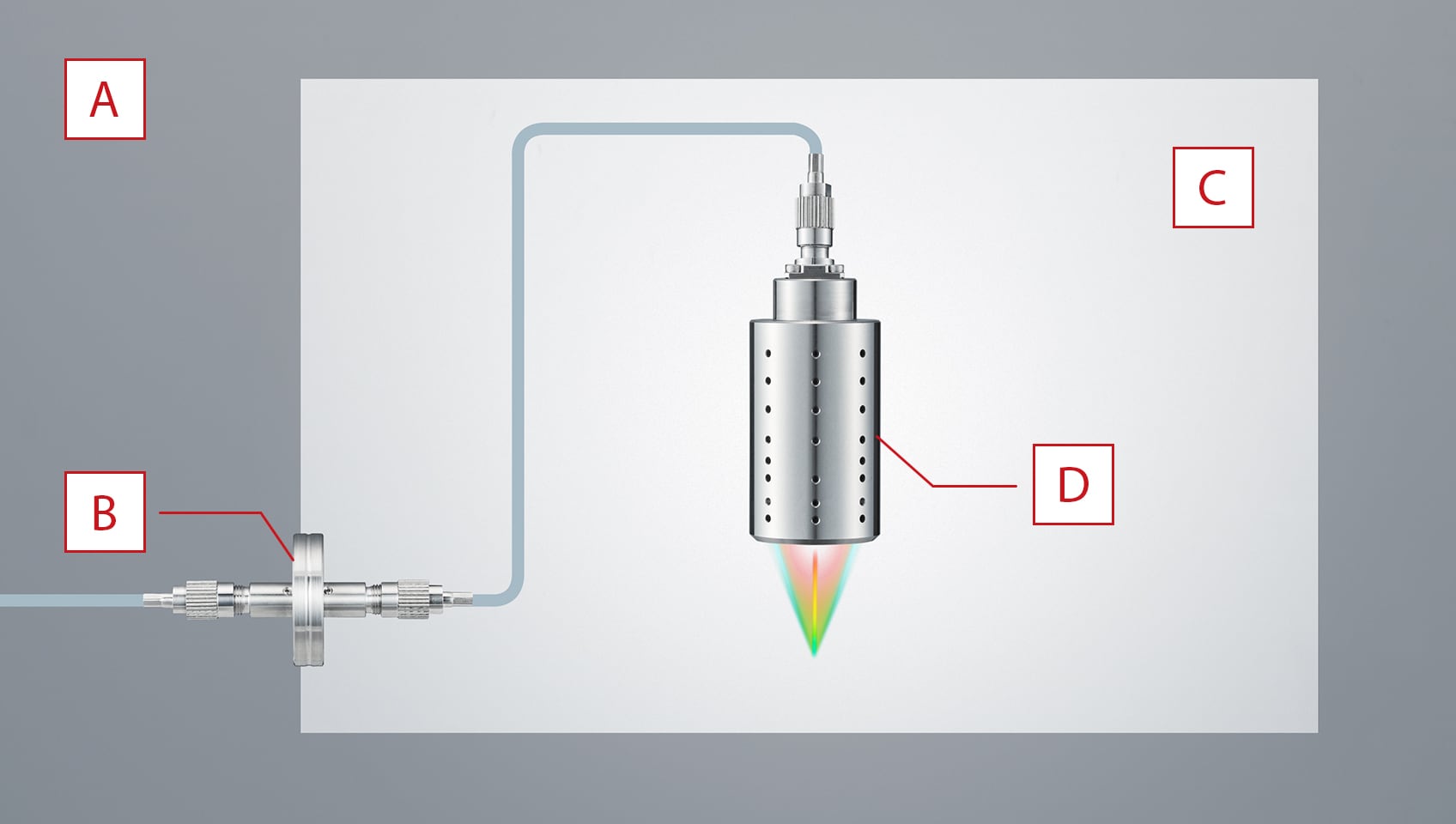

Vacuum and explosion-proof heads

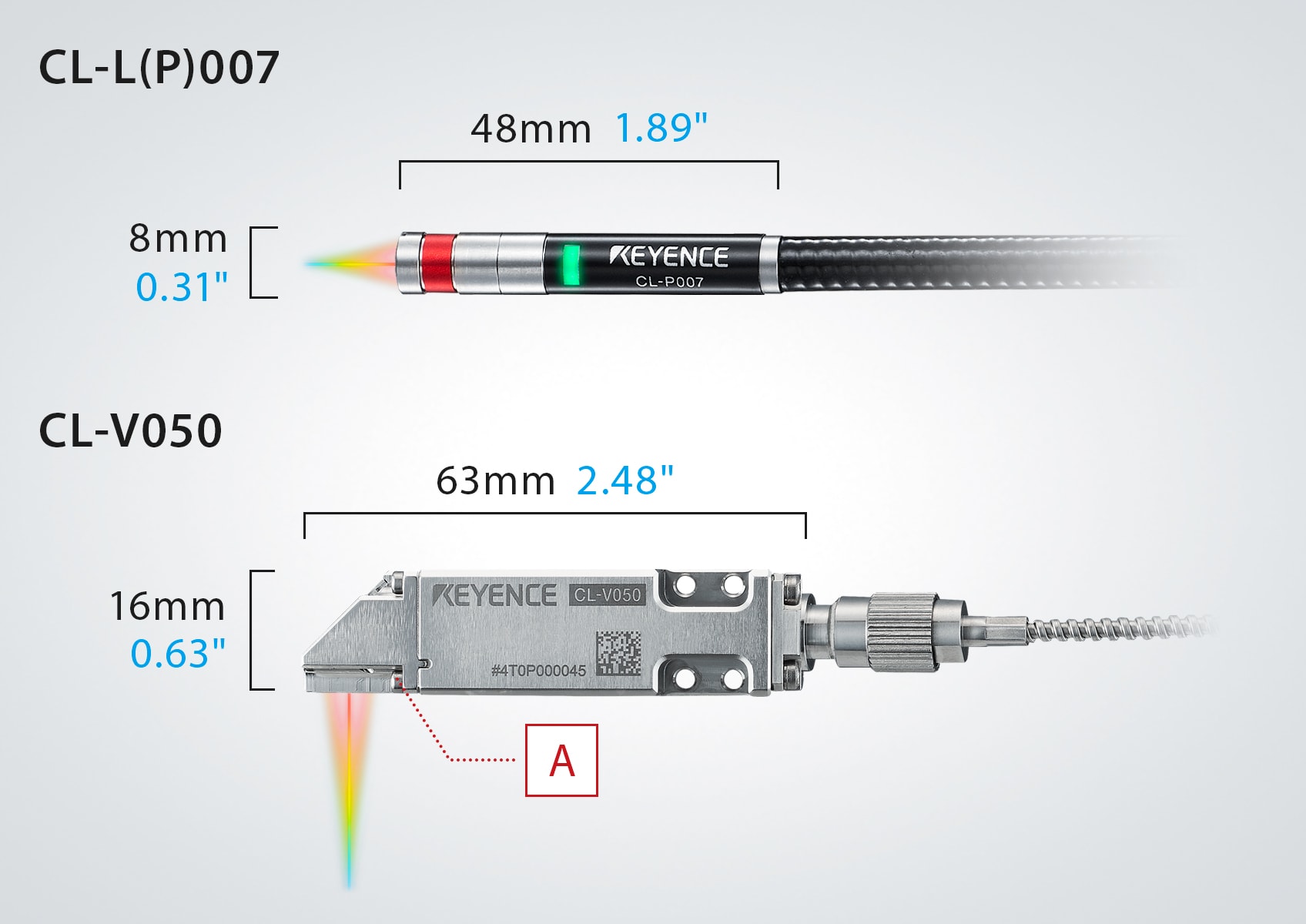

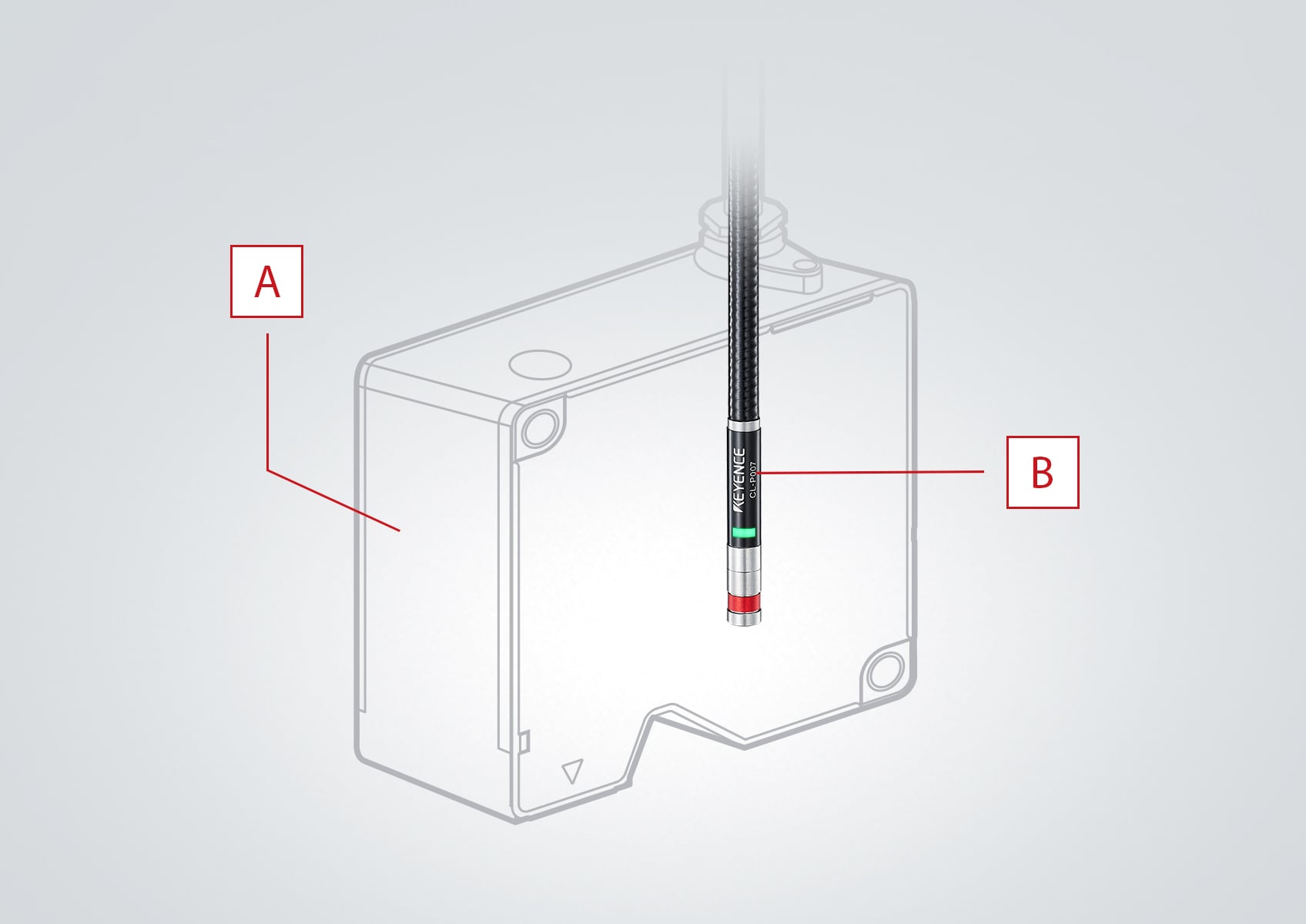

Low-profile heads
High-Accuracy Measurement of Various Materials
Accurate measurement is possible for both solid and liquid targets that cast multiple reflections or absorb light, including transparent and mirrored surface objects, unfinished metals, ceramics, and adhesives.
Ideal for Thickness Measurement
Accurate optical-axis alignment in just 3 simple steps
When measuring the thickness of targets with two different heads, optical-axis alignment is essential to ensure accuracy.
KEYENCE’s new dedicated jig and optical-axis alignment software make aligning the optical axis easy for anyone.
- Y-axis adjustment screw
- X-axis adjustment screw
- Y-axis adjustment screw
- X-axis adjustment screw

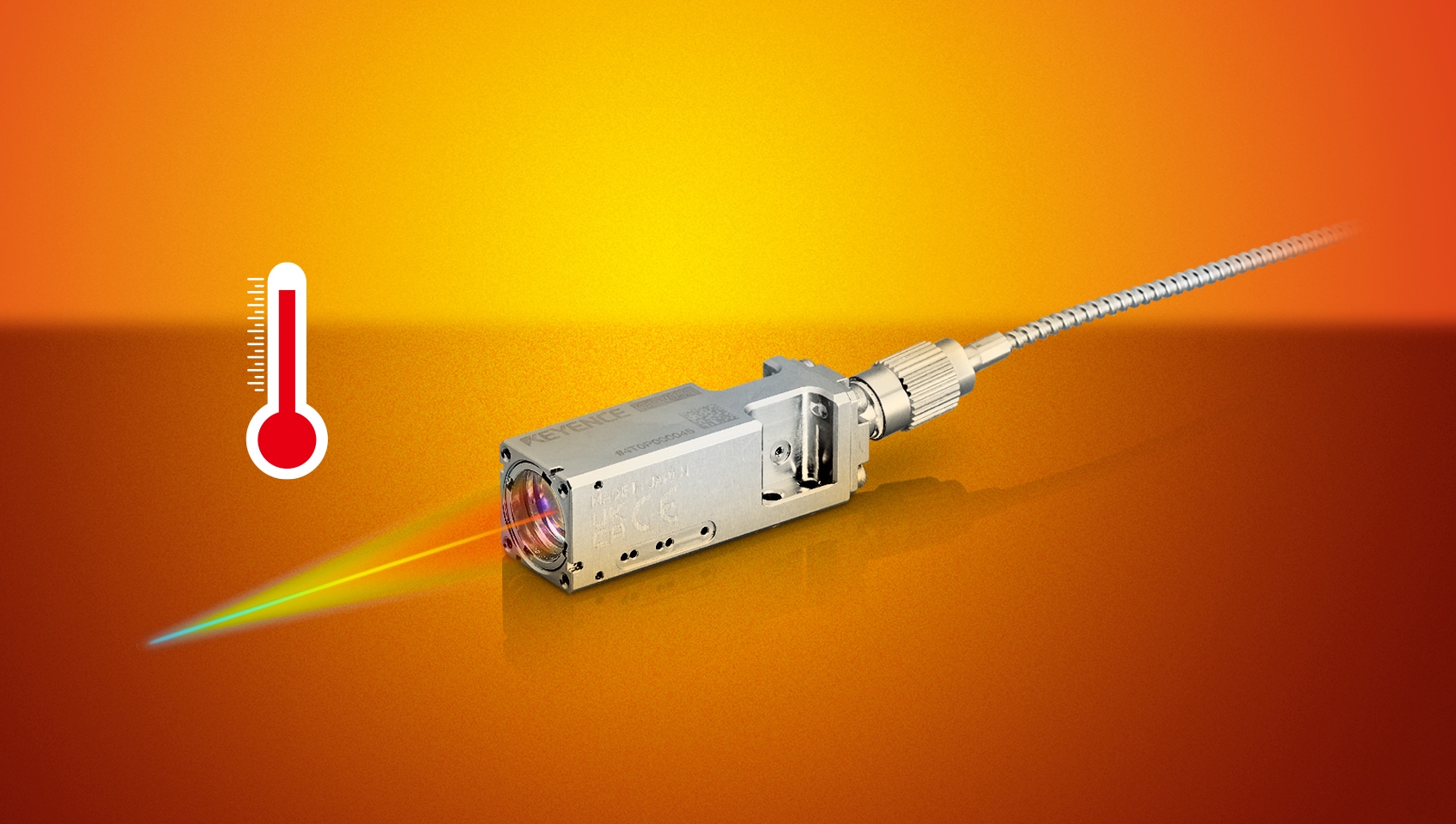

High-accuracy measurement is possible, even when the ambient temperature changes, due to the innovative athermal design
The CL-3000 Series’ athermal optical system cancels out ambient temperature variations to minimise errors.
