Laser Sensors

A rich lineup of remote setup and received light intensity differentiation laser sensors. This page introduces compact digital CMOS laser sensors that have a built-in amplifier and boast high durability and stability, reflective/thrubeam model laser displacement sensors that are easy to use and have the versatility to support diverse applications, and image-based laser sensors.

Products Lineup : Distance Detection Based Sensors

LR-X series - Digital CMOS Laser Sensor

Digital CMOS Laser Sensor LR-X series

The LR-X Series is a remarkably small laser sensor capable of detecting targets based on position and is unaffected by colour, surface finish, or shape. Impressive durability is achieved with its food-grade stainles steel housing (SUS316L), high IP ratings, and guarded cable. Position changes as small as 0.5 mm are possible, along with automatic and real-time intensity adjustment to ensure stable detection on any target.

Catalogues Price

Features

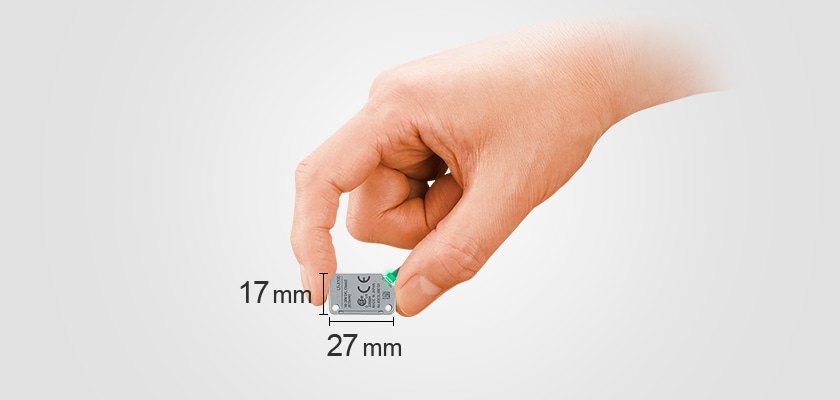

Compact & Robust Design for Use Anywhere

Whether building a new machine or retrofitting an older one, the ultra-compact size of the LR-X Series makes it easy to integrate into any space. The metal housing and rugged design also ensure it will last in any environment.

Stable Detection of Any Target

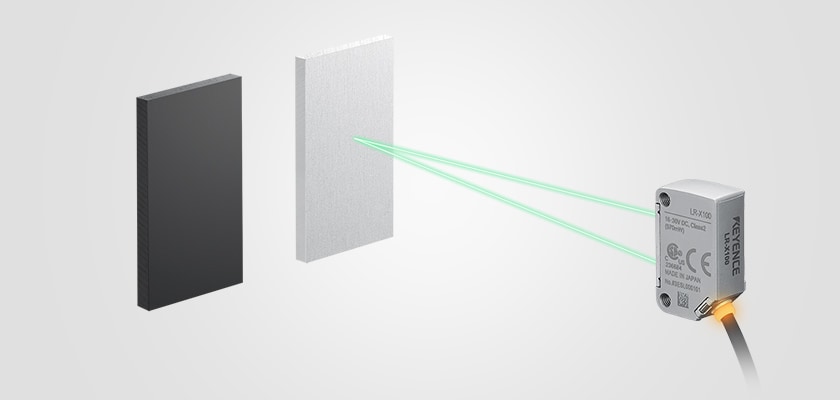

Minimum Detectable Position Change: 0.5 mm

The LR-X Series detects targets based on position, not light intensity. This allows for stable detection of targets regardless of colour, surface finish, or shape. This allows the LR-X Series to be used in a wide variety of applications, including those with small position changes.

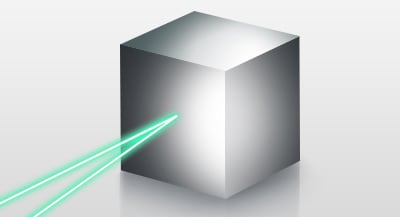

Shiny Metals

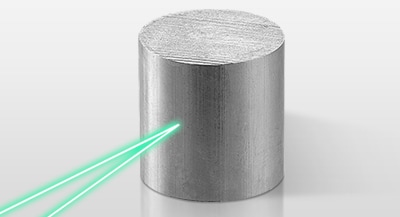

Rounded Surfaces

Black/Dark Targets

Varied Colours

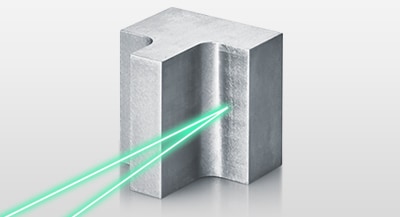

Angled Targets

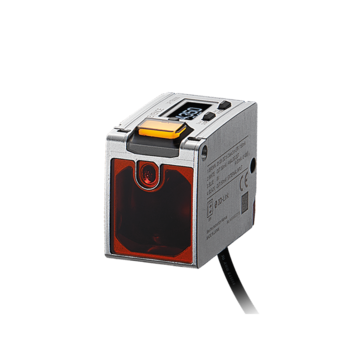

LR-T series - Self-contained TOF Laser Sensor

Self-contained TOF Laser Sensor LR-T series

The LR-T Series of reflective sensors represents a seamless fusion of innovative technology and robust functionality.

Catalogues Price

Features

Superior Detection Capabilities

The LR-T is designed to detect at long ranges while remaining highly stable. This is achieved due to the HS2 technology used, a combination of Time of Flight detection and a custom integrated circuit. Additionally, the interference prevention and Datum Function allow users to maximize this sensors capability in any situation.

Easy to Use

The LR-T Series is simple to install and calibrate. Flexible mounting options, a visible beam spot, push button teach, and an easy to read display allow for quick setup. Even at long distances, constant feedback is provided with the LR-T's highly visible status indicator.

LR-Z series - Self-contained CMOS Laser Sensor

Self-contained CMOS Laser Sensor LR-Z series

Laser sensor capable of detecting targets based on both position and contrast (detectable distance: up to 500mm).

Catalogues Price

Features

Best Detection Ability in its Class

The LR-Z's unique U.C.D. Function allows for stable detection of clear, metallic, or dark targets. This series can also detect purely based on distance, regardless of shape, colour, or surface finish.

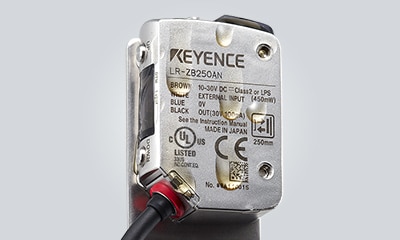

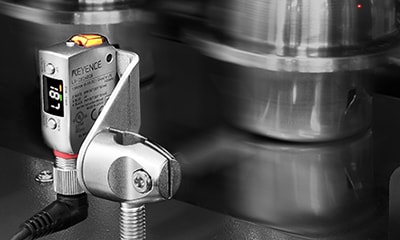

Durable & Long Life

The IP68/69K rating means the LR-Z is ready for the roughest of factory environments. Wash-down, oil spray, and many corrosives are no match for the stainless steel body. Additionally, physical impact or even overtightening are not a concern because of the highly durable design.

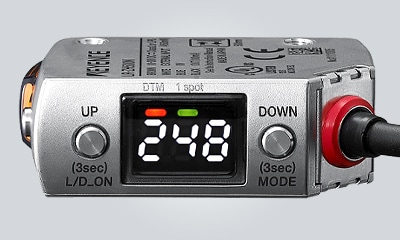

Simplified Operation

Simple setup and easy operation are at the core of the LR-Z's design. With a simple 1-touch teach, calibrating this sensor is straightforward and quick. A highly visible indicator and a 7-segment display make this sensor very easy to use.

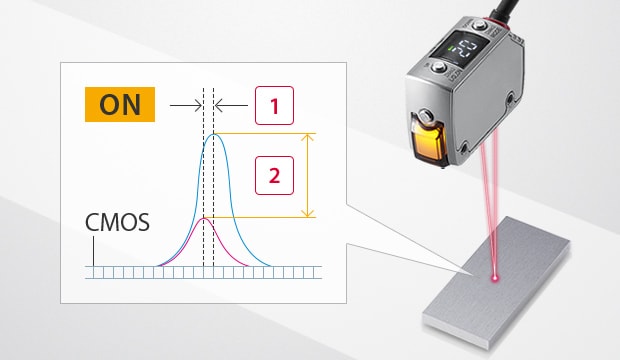

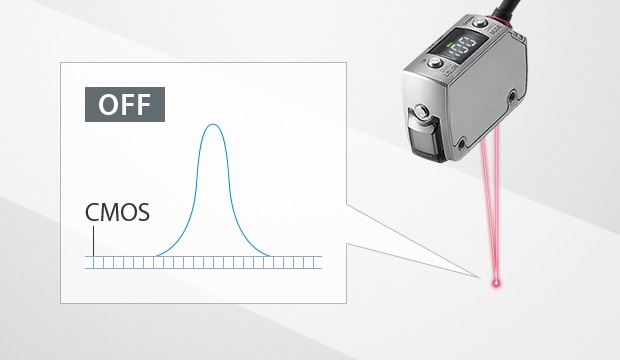

New feature U.C.D. Function Distinguishing a Target From a Background Using the Distance and Received Light

The sensor first registers the distance to the background and the received light, which are used as reference, and then detects the target by sensing that the distance or received light differs from the registered reference when a target comes into the detection area. With the background, stable detection of target is ensured even if the target is a complex shaped object, has changes in colour and surface condition, or is a thin object with a small height difference.

Without Target

With Target

1

Difference in distance
2

Difference in received light

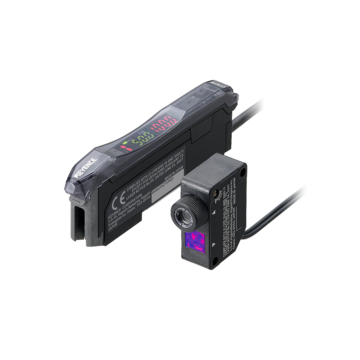

GV series - Digital CMOS Laser Sensor

Digital CMOS Laser Sensor GV series

The NEW GV Series Digital CMOS Laser Sensor provides unmatched performance, even on metal and black (rubber) targets. Multiple models available to meet all your laser sensing needs.

Catalogues Price

Products Lineup : Received Light Based Laser Sensors

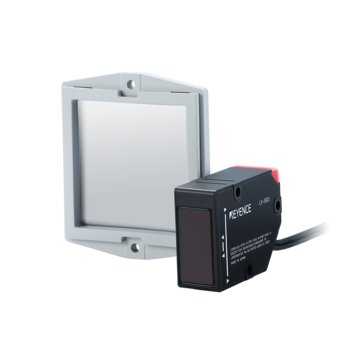

LV-N series - Multi-Purpose Digital Laser Sensor

Multi-Purpose Digital Laser Sensor LV-N series

Using a laser enables long distance detection for difficult applications while maintaining a focused, visible beam spot.

Catalogues Price

Features

Long Range and Visible Beam Spot

LV-N models feature a visible beam spot and sensor options powerful enough to blast up to 26ft. These features offer increased mounting and detection flexibility all while being as safe as a photoeye.

Simplified 1-Touch Teach

Complete set up with just one click. This feature sets the bar when it comes to quick set up.

LV-S series - Ultra-small Digital Laser Sensor

Ultra-small Digital Laser Sensor LV-S series

Choose from the largest selection of laser sensors in the industry!

Catalogues Price

LV series - Digital Laser Sensor

Digital Laser Sensor LV series

Choose from the largest selection of laser sensors in the industry!

Catalogues Price

Products Lineup : Laser Displacement Sensors

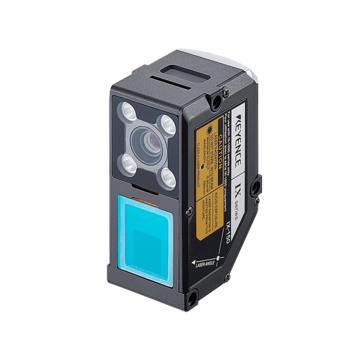

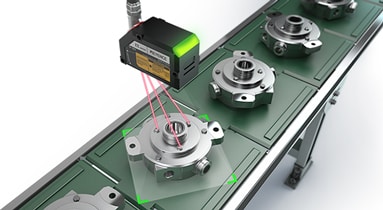

IX series - Image-Based Laser Sensor

Image-Based Laser Sensor IX series

IX Series image-based laser sensors can measure height anywhere within the area. Camera-based image recognition allows the laser to detect the height of the target point even when workpieces are not perfectly aligned on the production line. The height of where the laser hits the target will vary if the target is tilted or if the target itself is different, but the IX Series can identify the difference in height against the reference. For example, in a parts assembly line, a single IX Series unit can not only check for the presence of parts, but also perform seating checks and other height-based inspections. Thanks to its ability to detect height differences, the IX Series is also free from false detections and errors in the presence of glare from glossy surfaces of metal parts or when the detection target point has the same colour as the background, offering stable automatic inline differentiation.

Catalogues Price

Features

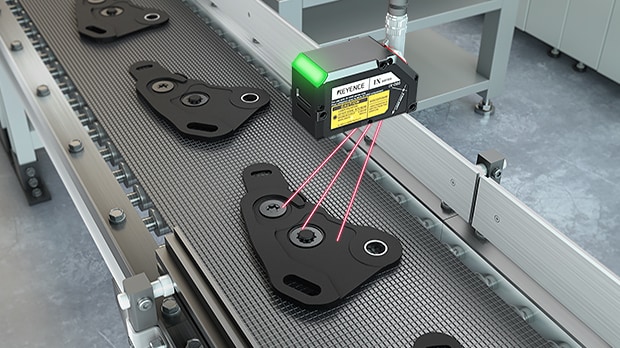

Stable Height-Based Detection, Even with Low Contrast Targets

Using a camera built into the sensor head, the IX Series recognises the locations of targets and measures the height and height differences of specified points. The ability to detect targets with low-contrast compared to the background-something that is not easy to do with conventional sensors-means stable detection is possible for a wide variety of applications.

Front/back difference check with single-colour washers

Automatic Calibration for Misaligned and Tilted Targets

By combining a scanning laser with a camera, the IX Series can account for variations in a target's position and tilt during measurement. This eliminates the need for jigs or other costly mechanical fixtures.

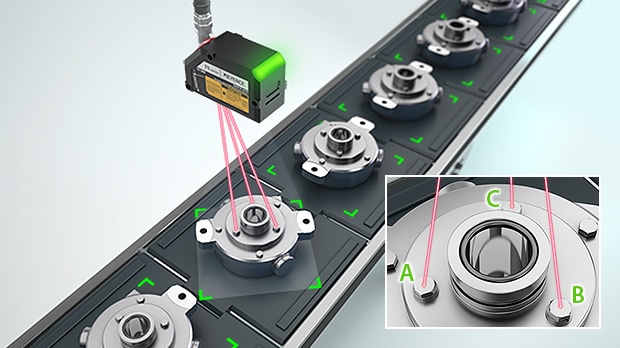

Bolt height difference checking

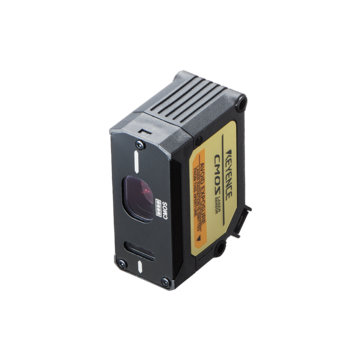

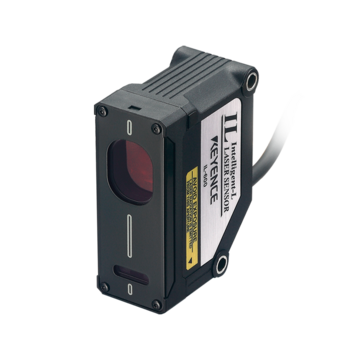

IL series - CMOS Multi-Function Analogue Laser Sensor

CMOS Multi-Function Analogue Laser Sensor IL series

Introducing a new high-performance head for the IL Series Stable performance for the most demanding detection

Catalogues Price

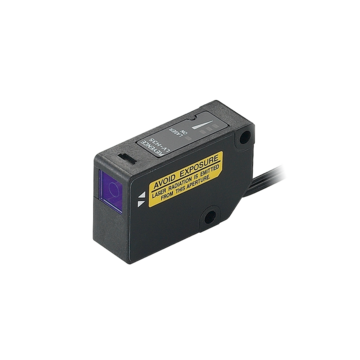

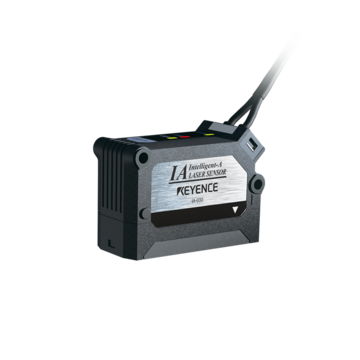

IA series - CMOS Analogue Laser Sensor

CMOS Analogue Laser Sensor IA series

Tough, Reliable, Repeatable Laser Measurement Simplified. KEYENCE brings you an economical analogue laser sensor.
