Positioning Sensors

These easy-to-use sensors can be used in a large variety of diverse applications such as highly accurate positioning and product type difference checking. The lineup also includes a brand-new image-based laser sensor that automatically corrects target misalignment to simultaneously detect multiple points with high accuracy.

Download Catalogues

Include Discontinued Series

Products Lineup : Reflective Laser Sensors

IX series - Image-Based Laser Sensor

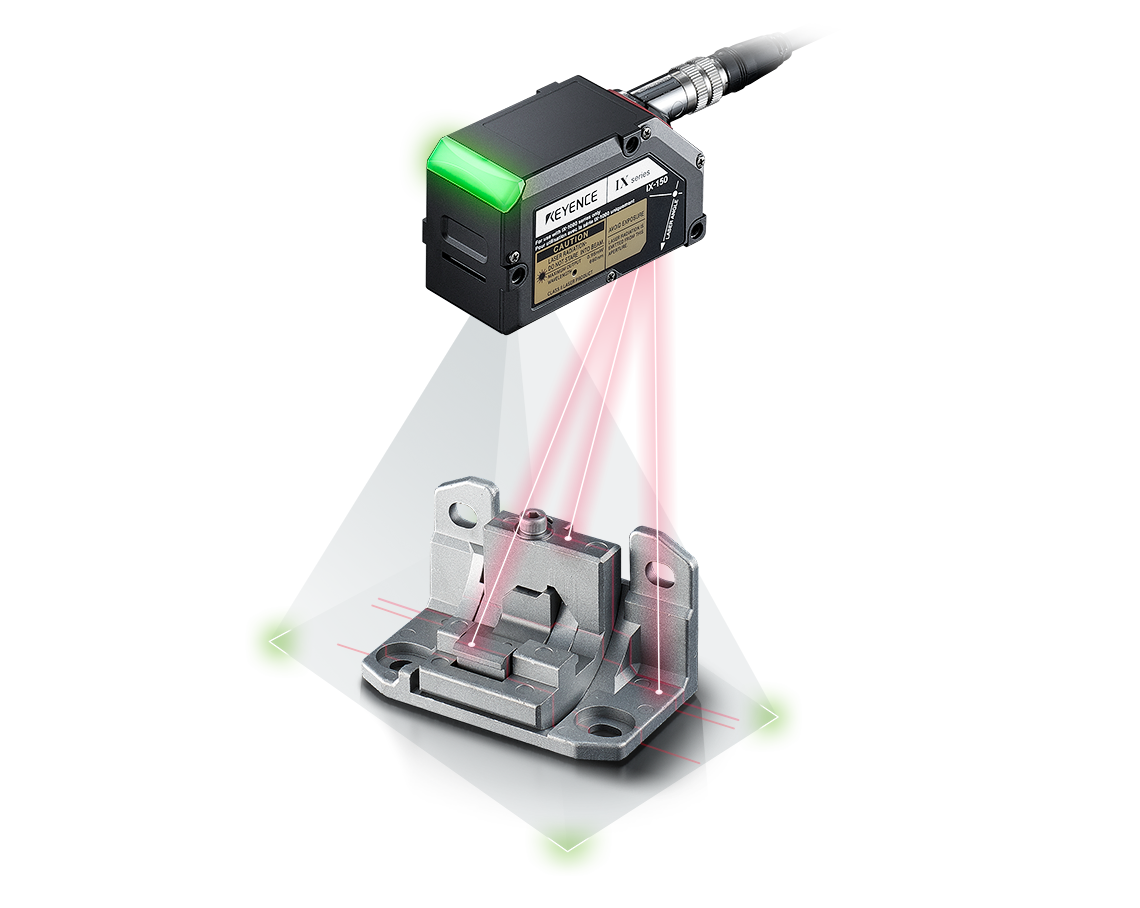

Image-Based Laser Sensor IX series

IX Series image-based laser sensors can measure height anywhere within the area. Camera-based image recognition allows the laser to detect the height of the target point even when workpieces are not perfectly aligned on the production line. The height of where the laser hits the target will vary if the target is tilted or if the target itself is different, but the IX Series can identify the difference in height against the reference. For example, in a parts assembly line, a single IX Series unit can not only check for the presence of parts, but also perform seating checks and other height-based inspections. Thanks to its ability to detect height differences, the IX Series is also free from false detections and errors in the presence of glare from glossy surfaces of metal parts or when the detection target point has the same colour as the background, offering stable automatic inline differentiation.

Catalogues Price

Features

Stable Height-Based Detection, Even with Low Contrast Targets

Using a camera built into the sensor head, the IX Series recognises the locations of targets and measures the height and height differences of specified points. The ability to detect targets with low-contrast compared to the background-something that is not easy to do with conventional sensors-means stable detection is possible for a wide variety of applications.

Front/back difference check with single-colour washers

Automatic Calibration for Misaligned and Tilted Targets

By combining a scanning laser with a camera, the IX Series can account for variations in a target's position and tilt during measurement. This eliminates the need for jigs or other costly mechanical fixtures.

Bolt height difference checking

IL series - CMOS Multi-Function Analogue Laser Sensor

CMOS Multi-Function Analogue Laser Sensor IL series

Introducing a new high-performance head for the IL Series Stable performance for the most demanding detection

Catalogues Price

IA series - CMOS Analogue Laser Sensor

CMOS Analogue Laser Sensor IA series

Tough, Reliable, Repeatable Laser Measurement Simplified. KEYENCE brings you an economical analogue laser sensor.

Products Lineup : LVDT / Contact Sensors

GT2 series - High-Accuracy Digital Contact Sensor

High-Accuracy Digital Contact Sensor GT2 series

The Scale Shot System in the GT2 Series improves upon the technology of conventional contact sensors and is now concentrated into a pencil-type sensor head.

Catalogues Price

Features

IP67G Oil-Resistant Design for Measurement in Machine Processing and Other Oily Environments

The sensor head - including the connector and cable section - are IP67G and NEMA Type 13 compliant. This means that stable measurement is achieved even in harsh environments containing splashing water or oil. In order to improve robustness - a common problem with contact sensors - careful attention was paid to the structure of the sensor body. The design incorporates a high-strength linear ball bearing and a seamless body for additional durability. In addition, the reduced weight of the spindle means minimal wear from friction and significantly improved durability. These design improvements reduce maintenance and equipment downtime.

Disc assembly inspection

Choose from 29 Different Head Variations

The GT2 Series is available in a wide range of heads, including pencil, air, and low-speed pressure types. Choose a design most suitable for the application.

GT series - General Purpose Digital Contact Sensor

General Purpose Digital Contact Sensor GT series

Tough and rugged general purpose digital contact sensor with push button calibration.

Products Lineup : Thrubeam Laser Sensors

IG series - Multi-Purpose CCD Laser Micrometer

Multi-Purpose CCD Laser Micrometer IG series

The intelligent I-Series consists of a high-accuracy sensor lineup that offers high cost-performance with the most advanced functions for on-site operations.

Catalogues Price

Features

Easy To Use

Easy to Use

The position monitor makes it easier to align the optical axis. Easily perform optical axis alignment by adjusting the sensor head so that all of the position monitor lights turn red.

Environmental Resistance

The enclosure satisfies the IP67 rating based on the IEC standards and remains watertight even after being held at a depth of one meter for 30 minutes. The enclosure is resistant to adverse environments and offers long-term durability.

IB series - Laser Thrubeam Sensor

Laser Thrubeam Sensor IB series

The intelligent I-Series consists of a high-accuracy sensor lineup that realises low-cost high performance with only the most advanced functions for on-site operations.

Products Lineup : Ultrasonic / Level Sensors

FW series - High Power Digital Ultrasonic Sensors

High Power Digital Ultrasonic Sensors FW series

Introducing the FW Series, a tough, super multi-reflective sensor unaffected by a target's material, color, or luster.

Features

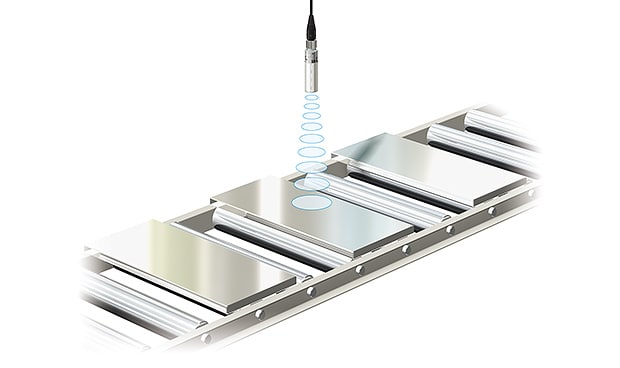

Can be used for all types of targets

The FW Series easily detects metal, glass, liquid level or other targets that have been difficult to detect with reflective-type photoelectric sensors. Also, the detections are not influenced by the color, pattern, or luster of the target surface.

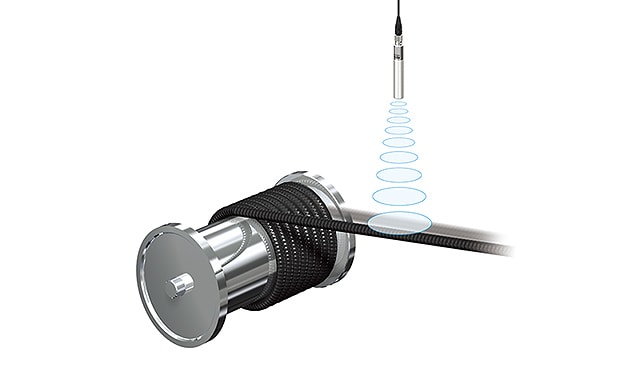

High stability and reliability

A new algorithm A.W.S. (Active Wave Stabilizer)* stabilizes detection while avoiding the influence of target vibration or external disturbances.
