2. Adjustment of Measurement Range
This section describes how to adjust the measurement range, assuming that you are setting up on the PC for the first time.
- Check the initial status. Turn on the PC and head and connect them with each other, and start the LJ-S Navigator.

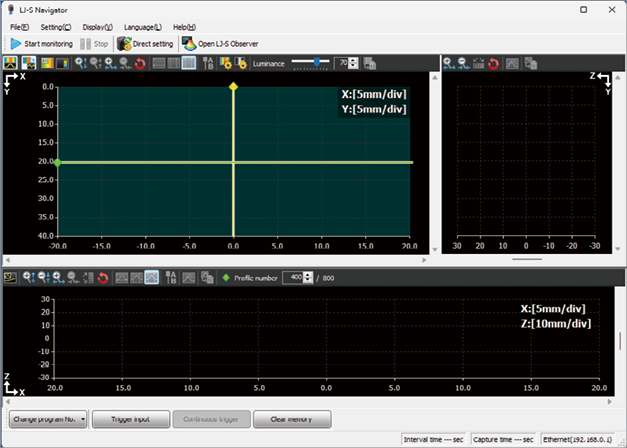

When the LJ-S Navigator starts for the first time, the following screen appears.
- After checking the initial status, adjust the height and adjust the measurement range.
|
Height adjustment Adjust the height while checking the actual head height.
|
Measurement range adjustment Adjust the measurement range while viewing the screen.
|
