Contact Distance Sensors / LVDT

A durable and oil-resistant contact displacement sensor that can be used safely in environments exposed to water and oil. Along with a rich selection of heads, two detection methods are available, LVDT (linear variable differential transformer) and KEYENCE’s proprietarily developed Scale Shot System II.

Download Catalogues

Include Discontinued Series

Products Lineup

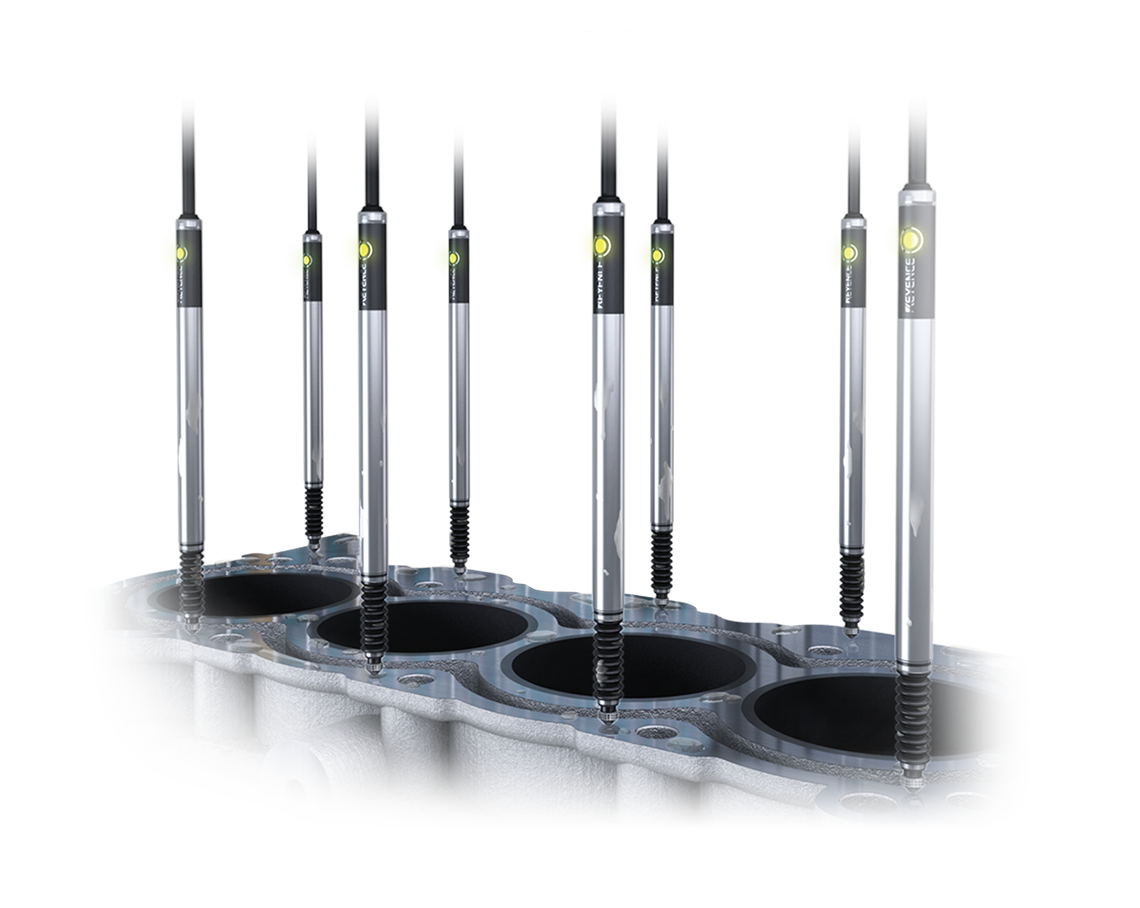

GT2 series - High-Accuracy Digital Contact Sensor

High-Accuracy Digital Contact Sensor GT2 series

The Scale Shot System in the GT2 Series improves upon the technology of conventional contact sensors and is now concentrated into a pencil-type sensor head.

Catalogues Price

Features

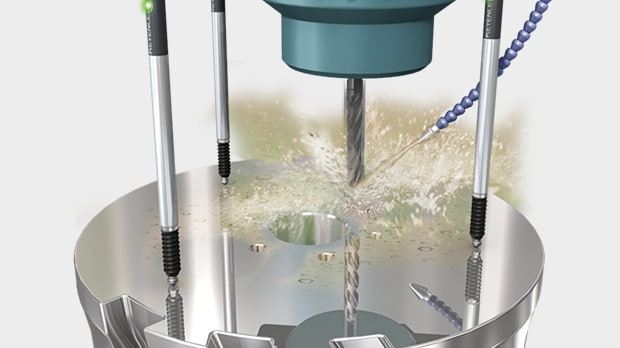

IP67G Oil-Resistant Design for Measurement in Machine Processing and Other Oily Environments

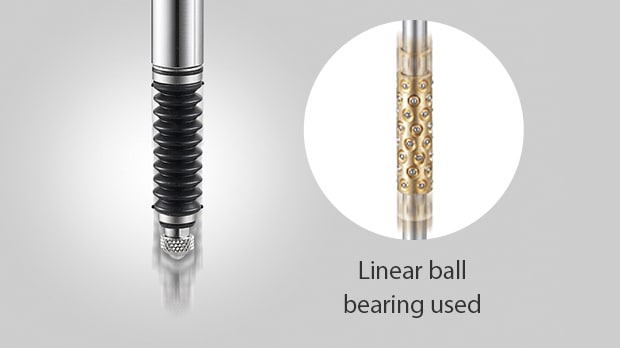

The sensor head - including the connector and cable section - are IP67G and NEMA Type 13 compliant. This means that stable measurement is achieved even in harsh environments containing splashing water or oil. In order to improve robustness - a common problem with contact sensors - careful attention was paid to the structure of the sensor body. The design incorporates a high-strength linear ball bearing and a seamless body for additional durability. In addition, the reduced weight of the spindle means minimal wear from friction and significantly improved durability. These design improvements reduce maintenance and equipment downtime.

Disc assembly inspection

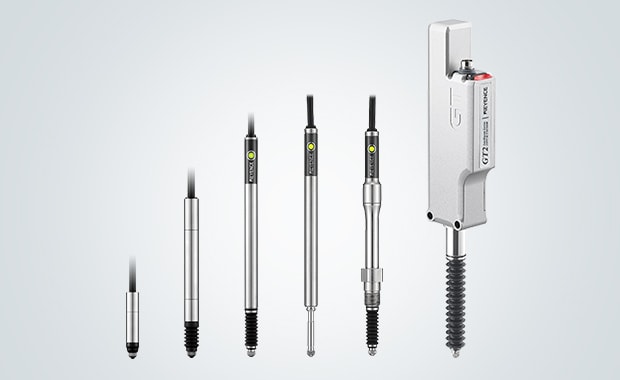

Choose from 29 Different Head Variations

The GT2 Series is available in a wide range of heads, including pencil, air, and low-speed pressure types. Choose a design most suitable for the application.

GT series - General Purpose Digital Contact Sensor

General Purpose Digital Contact Sensor GT series

Tough and rugged general purpose digital contact sensor with push button calibration.
