LJ-S8000 Series Easy Configuration Manual (PC Connection)

1. Click [Direct setting].

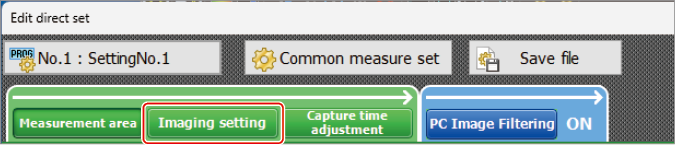

2. Click [Imaging setting].

3. Click [Image Optimization Navigation] on the right of the screen.

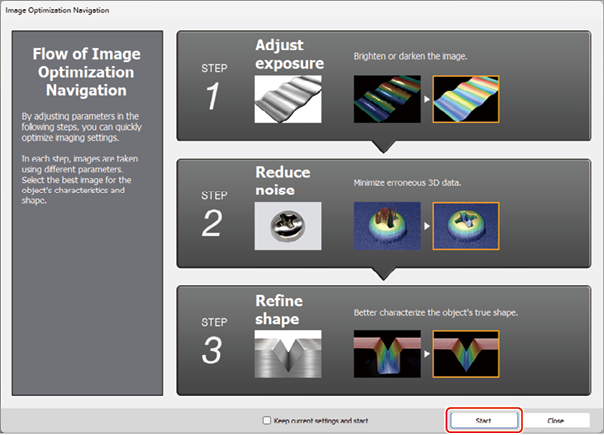

4. Click [Start].

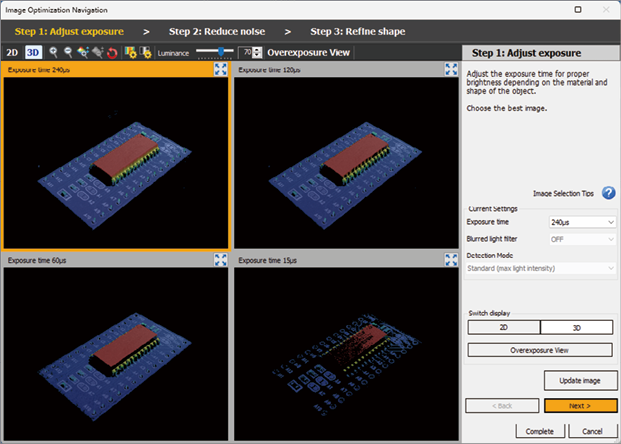

5. Check the on-screen instruction, and make adjustments by following the flow.

All you need to do is select an appropriate image out of the four images displayed in each step.

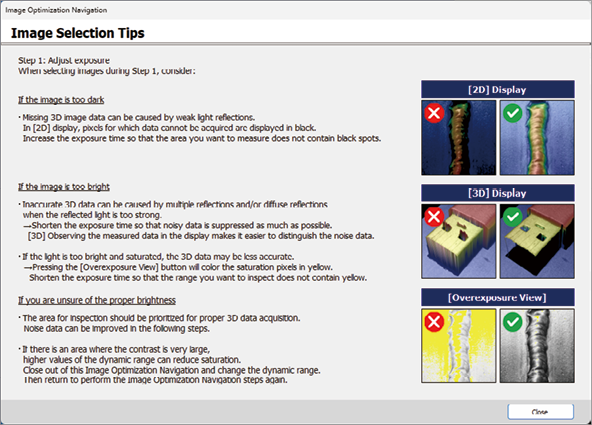

Click [Image Selection Tips] on the right of the screen to display detailed description for reference.
